ASME 30tons LPG Tank Pressure Vessel 60m3 LPG Storage Tank for sale. 30tons LPG Bulk Gas Storage Tank 60m3 LPG Tank for Nigeria Market.Pressure Vessel Gas Tank 60cbm 30tons LPG Bullet Gas Storage Tank.60M3 30TONS 60000Liters LPG Storage Tank LPG Tank LPG Tanker .
LPG Storage Tank Technical Parameters:
| NO. | model | design pressure | Cylinder size (diameter * tube length * wall thickness mm) | Dimensions (outside diameter * total height / total length mm) | Material | Total net weight(kg) |
| 1 | 10m/10000L | 1.77MPa | 1600*4400*10 | 1620*2400*5300 | Q345R | 2800 |
| 2 | 15m/15000L | 1.77MPa | 1800*5250*12 | 1824*2600*6300 | Q345R | 4250 |
| 3 | 25m/25000L | 1.77MPa | 2200*5800*12 | 2224*3000*7100 | Q345R | 5850 |
| 4 | 30m/30000L | 1.77MPa | 2200*7100*12 | 2224*3000*8400 | Q345R | 6800 |
| 5 | 45m/45000L | 1.77MPa | 2600*7500*14 | 2628*3400*9000 | Q345R | 9770 |
| 6 | 50m/50000L | 1.77MPa | 2600*8500*14 | 2628*3400*10000 | Q345R | 10800 |
| P.S:We can produce according to your request, you need the model,To provide you with the best quality, best price, best service | ||||||
| Technical Specification | Parameter | |
| Tank | Tank name | LPG storage tank |
| Overall dimensions | 13024*3244*3830 mm | |
| Inner diameter | 3200mm | |
| Vessel type | on the ground | |
| Designing pressure | 1.91 Mpa | |
| Working pressure | 1.61 Mpa | |
| Designing temperature | -19~50 | |
| Filling medium | Liquid petroleum/propane gas | |
| Corrosion margin | 1.00 mm | |
| Curb weight | 49400kg | |
| Full capacity | 100m³ | |
| Heat treatment | Bulk | |
| Filling factor | 520 Kg/ m³ | |
| Tanker & pressure parts material | Q345R | |
| Hydraulic test pressure | 2.22 Mpa | |
| Gas tight test pressure | 1.91 Mpa | |
| Produce standard | ASME standard and GB150 standard | |
| Optional accessories | safety valve, SCL-UHZ (magnetic flap gauge),pressure gauge,thermometer,cut-off valve etc. | |
| Liquid indicator | Model | UHZ-518C14 |
| Version | Magnetic | |
| Nominal pressure | 2.5 Mpa | |
| Scope of testing | 50~2500 mm | |
| precision | 2.5 | |
| Safety Valve | Model | A42F-2.5-80 |
| Version | Built-in | |
| Nominal pressure | 2.5 Mpa | |
| Nominal radius | DN80 | |
| Opening pressure | 1.68-1.76 Mpa | |
| Re-seating pressure | ≥0.8 Mpa opening pressure | |
| Handling System | Feed pipe | DN80 |
| Drain pipe | DN80 | |
| Admission port | DN50 | |
| Sewage outfall port | DN80 | |
| Vent nozzle port | DN80 | |
Describe For LPG Storage Tank:
Warranty and after-sale service
Liquefied petroleum gas(LPG)storage tank with compressed gas or liquefied gas storage tanks.
Sitong promises the top quality of every set of machine and best after-sales service as followings:
(A) The boiler body guarantee is two years , for accessories three years
(B) During the guarantee period , if the main body defective or broken without wrong operating ,
Sitong must replace the parts for free or prepare the spare-parts for free.
(C) Sitong should provide boiler technical service and operation guidance for whole life long.
(D) Regarding to the installation and training , the buyer should take all thecorrelative charges
(accommodation and food , round -trip tickets)

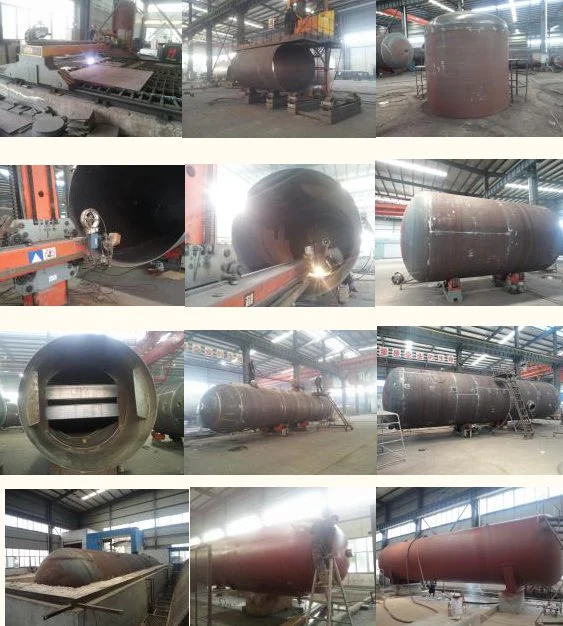

LPG Tank Produce Progress Details
LPG Skid Station LPG Tank Relevant Products
Our Service:
1.Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as a manufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 90 countries and regions
2. FAQ
Q1. Are your manufacturer ?
A : Yes! We can totally manufacture the trucks as you required.
Q2. Do you have a good orgonization of shipping vessle ?
A : Yes, we have a good and long term cooperation with the world first class famous shipping company line,
like MSK,PIL,SUNSHINE SHIPPING,ETC.The order over 500 units of vehicle,we will lease a vessel.
Q3. How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your
choosing to make sure daily maintain of your vehicles.
Q4. Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.
Q5. What is the delivery time and payment term?
A : Our common products delivery time is 10-35 working days except some definitely special vehicles.
We accept 30% T/T deposit and 70% balance T/T or 100% L/C. More details, please contact with our salesman.
Company Information:
1. Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest
manufacturer with very professional experience in special automobile field for more than 15 years in China.
We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated
Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck,
Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation
Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru,
Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines,
Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
