I. The Specifications of 45 m³ Bulk Cement Trailer
|Trailer Model||45 M3 BULK CEMENT SEMI TRAILER|
(Lx W x H)(mm)
|Function||transport bulk powder|
|Loading Weight( KG)||55000|
|Thickness(mm)||Tank body: Q235A 5mm carbon steel |
End plate: Q235A 6mm carbon steel
|Air compressor||37 KW,0.2Mpa. 1000r/Min(12m3/minute) Bohai brand|
|Engine||Diesel engine: Weichai brand model:4102.|
|Compartment||1 inner fluidized bed: air bag|
|Axle||3x13Ton, FUWA brand|
|Suspension system||Mechanical leaf spring suspension|
|Leaf spring||90(W)mm*13(Thick)mm*10 Layer|
|Manhole cover||500mm manhole cover. 1 sets with 1 breath valve.|

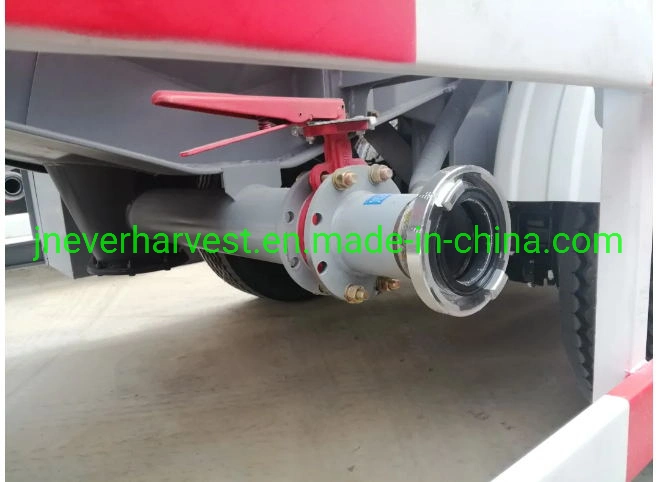

|Discharge valve||4" disc valve|
|Discharge pipe||4" seamless steel tube|
|Landing Gear||24Ton, double speed, JOST brand|
|Traction Pin||2" or 3.5"|
|Spare Wheel Bracket||2 pieces|
|Tool Box||1 Standard|
|Side guard||According to customer's requirement|
|Brake system||Dual Line braking system|
|Brake air chamber||WABCO brand, Six big double air chambers|
|Electrical system||1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)|
|Tail lamp with turn signal, brake light & reflector, side lamp etc.|
|One set 6-core standard Cable.|
|Painting||Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint|
|Packing||Polish with wax before shipping|
II. The details of 45cbm Powder Material Transport Tanker Semi Trailer
Engine, compressor and traction pin
Tyres and Landing Gear
Inside Details of Cement Trailers
More Details of Bulk Cement Semi Trailer
III. Shipping of 3 Axles 45 CBM Powder Material Transport Bulk Cement Tanker Semi Trailer
IV. Dry bulk tank advantage
1. Best Raw steel: Bulk cement storage tanks body and construction made of YP ≥ 620 high-strength steel, ensure longer service life and lighter tare weight.
2. Excellent Performance: Unique design ensures unloading rate > 1.3t/min, 15m vertical discharge distance.
3. Quality welding: Good steel with quality welding support longer guarantee for dry bulk tank.
4. Durable Painting: the Whole vehicle Shot blasting clean base for painting, twice primer support longer painting life.
5. Dry bulk tanker design: 3D drawing with Ansys & Hypermesh Analyze support reasonable design.
