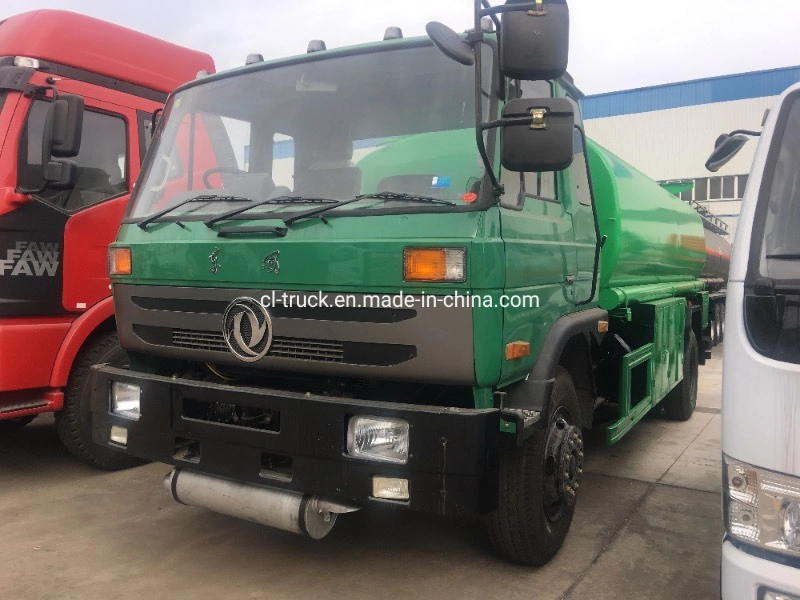

Dongfeng 6X4 Cummins engine fuel tanker

Dongfeng 145 type fuel tank truckProduct information Main SpecificationProduct NameDongfeng fuel tank truck 10000litersDriving Type  4×2,left hand driveWeights  Related weight (kg)10000Curb weight(kg)6320DimensionsWheelbase(mm)3950Overall Dimension(mm)7300×2470×2800Box dimension 3000gal

Featured Products

Dongfeng 145 type fuel tank truck

Product information

Main Specification
Product NameDongfeng fuel tank truck 10000liters
Driving Type  4×2,left hand drive
Related weight (kg)10000
Curb weight(kg)6320
Overall Dimension(mm)7300×2470×2800
Box dimension 3000gallon(10000liters)
 Max speed(km/h)90
Engine modelB170 33 (170HP)
Engine brand Cummins brand
Engine type4 stroke water-cooled,inter-cooling
No. of cylindersstraight-6 cylinders
Max. output (kw)125kw
 Drive Line
Transmission6 forwards,1 reverse gear,manual operation
Steering With power steering
Brake systemAir brake
Cab Dongfeng 153 cab,
Front axle3.6 tons
Rear axle8 tons
Tire specification
Tire specification 9.00-20 standard tire,6 tires+1 spare tire
Specification of oil truck
Tanker capacity3000gallon(1000*2 compartments,500*2 compartments)
Tanker material Q235 carbon steel
ManholeMan way access hole on top of tank;1 units DN500mm manhole
Man walk wayWith skid resistance man walk way on top of tank
Pump With oil pump
optional1.With oil pump
3.european standard:sea valve,bottom loading,flow meter,european manhole,oil vapor recovery
4.fuel dispenser

Dongfeng 6X4 Cummins Engine Oil Tank Truck
Dongfeng 6X4 Cummins Engine Oil Tank Truck
Dongfeng 6X4 Cummins Engine Oil Tank Truck

Dongfeng 6X4 Cummins Engine Oil Tank Truck
Dongfeng 6X4 Cummins Engine Oil Tank Truck
Dongfeng 6X4 Cummins Engine Oil Tank Truck
Dongfeng 6X4 Cummins Engine Oil Tank Truck


Product Notes:


Clw of fuel tanker truck is one series of our company. This series of products is mainly used for all kinds of oil. chemical liquid transportation of petrochemical sector; with oil-pumping, separation variety of oil.separation packing of oil. It can separate a department independent, it can packing different kinds of oil,chemicals,foods,the design can be implemented on pump out over the watch,also can be implemented on pump inlet and pump out didn't over the watch,also can be implemented on pump inlet and pump out didn't over the watch and did't over the watch and other function. both tankers use the original chassis to modification,users also can take different chassis to our factory to modificatio by themself.

The material of tank used by high-quality carbon steel,manufactured in accordance with international standards,the appearance can be ellipse or cylindrical

The tank used advanced butt welding technology,using high pressure gas leak detection after finished the that the tanks has the characteristics of high strength,stable,safe,etc.

Alcohol,chemical tankers products by south Korean imports of stainless steel.thickness can be:4mm 5mm 6mm 8mm.

All tankers of sulphuric acid,hydrochloric acid,alkali liquor are using rotomolding by once.thickness can be 12mm-16mm.after welding the tanks using shot peening process,achieved rust.painting used advanced paint technology,beautiful appearance and long life.

According to the use of tankers,can choose centrifugal pumps,copper gear pumps,stainless steel pumps ,it has big flow\fast speed of suction and some other characteristics.also can choose other models of suction pumps.

We can product the tank according to customer's requirements,also can product different

series of heating tankers and insulation tankers.

The measure of fuel tank truck can use single count \double count back to zero

methods,or choose truck tax control by computer methods ,cooking oil count can choose the

cooking oil computer method

Company information
1.  ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW .Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, garbage truck,sewage suction truck, fuel tank, high-altitude operation truck, truck mounted crane, dump truck, LED advertising truck,LPG truck/trailer,LPG filling tank, van truck, semi-trailer, fire engine, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.
2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
3.Quality control:our company truck pass ISO,3C,ASME certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.

4. Export market: Africa,Asia,South America,Pacific and so on
5.Our company cooperate with famous chasis manufacturers,such as DONGFENG,SHINOTRUK,FOTON, JAC,JMC ,SHACMAN,FAW and etc.
6.Factory Show:

Dongfeng 6X4 Cummins Engine Oil Tank Truck


1.We can product truck accroding the customer's requirments(color,size,logo and so on)
2.We can send our technician to arrive the customer's country to provide the service .
3.We can train customer's workers for free.
4.Our truck warranty:12 months.we can provide the parts for free at the frist year.

Success Case Show

Dongfeng 6X4 Cummins Engine Oil Tank Truck
Dongfeng 6X4 Cummins Engine Oil Tank Truck

Customer Visit

Dongfeng 6X4 Cummins Engine Oil Tank Truck
Dongfeng 6X4 Cummins Engine Oil Tank Truck
1.Payment term.
-T/T,30% deposit ,and pay the blance before shippment from our factory
-L/C,L/C price is expensive than T/T price.
2.What about quality ?

Our truck are brand new truck,Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.

our company truck pass ISO,3C,ASME certification.
3.Visit our factory
Our factory are in suizhou city,hubei province china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter ,pls send your private information and company information to me.
