Dual Axle 20000kg 40.5m3 LPG Trailer Tank LPG Tank Semi Trailer

we have the biggest LPG trailer and LPG truck in the world:1. we have the biggest LPG trailer in the world, the valid volume is 59.52cbm; low transport costs, more profit.2. we have the biggest LPG truck in China, it\'s valid volume is 35.5cbm;3. our LPG storage tank ranged from 10cbm to 200cbm. both on the floor

Featured Products

we have the biggest LPG trailer and LPG truck in the world:
1. we have the biggest LPG trailer in the world, the valid volume is 59.52cbm; low transport costs, more profit.
2. we have the biggest LPG truck in China, it's valid volume is 35.5cbm;
3. our LPG storage tank ranged from 10cbm to 200cbm. both on the floor ones and in the ground ones.
4,we have mobile filling station from capacity 8cbm to 100cbm ,
5,lpg filling station capacity is from 8m3 to 100m3 ,


We have made the national A2,C2 type of pressure vessel qualification, to obtain export certification and qualification ,we have advanced equipment including automatic submerged arc welding machine, large underwater plasma cutting machine, rolling machine and other forming large tank. Testing equipment including ultrasonic flaw detector, X-ray detectors, magnetic detectors, equipped with heat treatment and testing rooms to make sure quality of products.
All products must be get inspection authorization from third party before shipment.

Manufacture and design code could be GB150 OR ASME.
if you are interested in LPG storge tanker , please feel free to contact me at 86-13872885121

specification of double axles 20000kg 40.5m3 lpg trailer tank lpg tank semitrailer:
vehicleVehicle TypeLPG Semi-trailerTankdesigned pressure2.16Mpa
 Vehicle NameLiquefied gas semi-trailer Max worked pressure1.94Mpa
 Overall dimension11324×2500×3730 designed temperature50ºC
 Actual Capacity40.5M3 filling mediumpropylene
 Curb weight 13900 corrosion allowance 1.0mm
 Real capcity17010Kg capacity40.5M3
 AxleFrong axle:15390Kg
Rear axle:23040Kg
 heat treatmentWhole body
 rear overhang1450 tank dimension11058×2228mm
 departure angle-/26 filling ratio420kg/m3
 axles load24000(three axles) tank materialQ345R
 wheel base6720+1320 Water pressure test pressure2.66MPa
 Number of tires8 aritightness test pressure1.77MPa
 tire specification11.00R20safety valueModelA412F-2.5-16
 rear track base1840/1840 Nominar pressure2.5Mpa
Level gaugeModelYWJ-25 Nominar diameterDN80
 Typerotary tube gage Valve Dia53mm
 Nominar pressure2.5Mpa unseal pressure2.27-2.37Mpa
 test range50-2450mm reseating pressure0.9times than unseal pressure
 precision2.5 Opening pressure1.90MPa
   loading and unloading deviceModelgas phaseYKAG-3.3-6
cut deviceModelgas phaseQGJ43F-2.5-8  liquid phaseYKAG-3.3-7
  liquid phaseQGJ43F-2.5-7 Nominar diametergas phaseDN25
 Nominar diametergas phaseDN25  liquid phaseDN50
  liquid phaseDDN50 nominar pressure3.3Mpa
 operated methodpullout Mechanical type Typequick fitting
 semienclosed cutout temperature70±5ºCSpecial functionActual capacity is 40.5M3,BPW axle 12T,safety valve ,JOST outrigger ,Liquid Indicator ,pressure indicator,termperature indicator,Emergeny Cut-off Valves ,fire bottle ,antistatic earthing tape ,protective guard ,tire security board ,

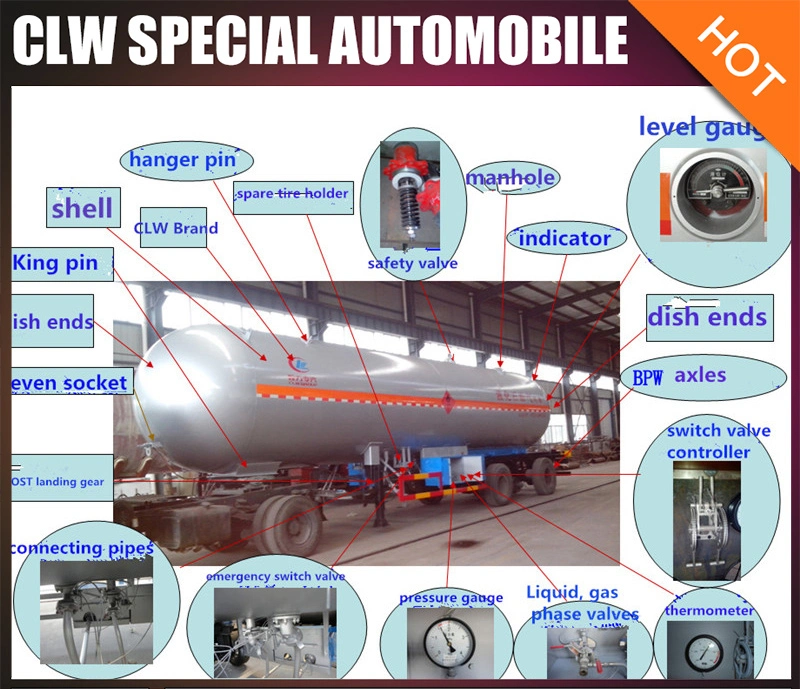

picture of double axles 20000kg 40.5m3 lpg trailer tank lpg tank semitrailer:

Double Axles 20000kg 40.5m3 LPG Trailer Tank LPG Tank Semitrailer
Double Axles 20000kg 40.5m3 LPG Trailer Tank LPG Tank Semitrailer



Double Axles 20000kg 40.5m3 LPG Trailer Tank LPG Tank Semitrailer
Double Axles 20000kg 40.5m3 LPG Trailer Tank LPG Tank Semitrailer

Factory introduction:
1. ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is the biggest special purpose vehicle manufacturer in China.also we are famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW.Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.

2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
 We have been in this field for over 10 years, we have more than 300 types  of special trucks, our workers are more than 1000 and factory is more than 690,000m2 .We have successfully exported our trucks to Ghana, Sudan, Nigeria, Tajikistan, Namibia, Burma, Korea, Iran, Iraq, Vietnam etc. many Africa & Asia countries more than 4000 trucks every year.

3.Quality control:our company truck pass ISO,3C,BV certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.

4.Design capacity :Our factory have 30 technician and designer.

5. Exhibition:our factory attend the Guangzhou Trade Fair each year.

6. Export market: Africa,Asia,South America,Pacific and so on

7.Our company cooperate with famous chasis manufacturers,such asDONGFENG,FAW,SHINOTRUK,IVECO,FOTON,SHACMAN and etc.


Factory certificate:

Double Axles 20000kg 40.5m3 LPG Trailer Tank LPG Tank Semitrailer

Shipping :
Double Axles 20000kg 40.5m3 LPG Trailer Tank LPG Tank Semitrailer

MOQ:

Q1. Quality control
A:We make quality control for each step while producing and before shipping.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

   LC terms is also can be accepted .

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.DAP etc .

Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

For standard products, delivery time is as below:

Water tanker truck:7 days
Fuel tanker trailer:15-20days
Garbage truck:15 days
Sweeper road truck:25 days
Wecker truck:7-10 days
Suction sewage/Fecal truck:7-15 days
Crane truck:15 days
Refrigerator/Van truck:7-15 days
Dump truck:20 days
Concrete mixer truck:7-25 days
LPG :20-30 days
LED truck:7-15 days
(the above is left hand drive chassis ,if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to contract .)



Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. How to control truck quality?
A: we have Rich experience workers and engineer to control quality before and on production , we strictly followed STATE special truck technical specification and safety production specification .

We have been in this line for over 15 years, dealing with all kinds of special trucks and trailers.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.



Q9. Did you sell truck to our country before?

A:Our main market is Africa, Asia, South America , Oceania ,middle east , annual sales is around 5000units and keeping growing every year .
