Factory 40t 48000L 42t 50000L Fuel Tank Trailer Gasoline Tank Oil Trailer

>>Part I: Truck specificationThis factory 40T 48000L 42T 50000l fuel tank trailer petrol tank oil trailer is used for transporting oil/fuel/diesel or use pump to load/unload oil/fuel/diesel ,  we have capacity from 3cbm to 60cbm , include truck and trailer , we make trailer like square tank and round tank per you

Featured Products

>>Part I: Truck specification

This factory 40T 48000L 42T 50000l fuel tank trailer petrol tank oil trailer is used for transporting oil/fuel/diesel or use pump to load/unload oil/fuel/diesel ,  we have capacity from 3cbm to 60cbm , include truck and trailer , we make trailer like square tank and round tank per your requirement .

factory 40T 48000L 42T 50000l fuel tank trailer petrol tank oil trailer specification:


Itemunitparameter
Vehicle model 45m3  Oil Semitrailer
Overall dimensionsmm10800*2500*3880(TBD)
Rear tracking back 1840
 Fact cubageL45000
 Curb weightkgAppro×10000
 Loading weight 37800
 Approach/departure angle°-/19
Tank shell materail6mm carbon steel
Department6
Manhole no 6Nos , material is carbon steel , anti overflow pipe at each manhole
Tire specification12Nos Dongfeng  fengshen 11.00R20
Axle3nos FUWA 13T
SuspensionSpring suspension
Landing gearYangzhou 28T ,two speed,manual operating ,heavy duty lading gear
Brake Plate 16T
Loading Loading from Top manhole
discharge nozzle6NOS at side of bottom tank
Self discharge nozzle2 at rear tank
Kingpin90#3.5inch King Pin
ColorGrey or option
suspensionPlate leaves suspension/airbag suspension
LadderOne at rear side of tank,front ladder option
Lighting systemrear end lighting, side lighting, Brake lighting and fog lighting
Test Pressure72KPa before painting, holding for 30mins
Equipment 1,two walkway at top of tank , width 320MM ,checker plate
2,Fire extinguisher box is big enough to set 2kg fire extinguisher. The two boxes are fixed on the left and right side of the tank.
3,Fender: Plastic material, semicircle.
4,Hose carries: 2 pcs at both side
5,Hose: 2 pcs, with quick camlock coupling
6,one tool box,one water tanker
7,450mm height guard bar at two sides of top tank
OptionCollapsible barrier,level gauge,pump, ABS ,Europe standard accessory include bottom valve , Oil and gas recovery unit, Overflow alarm or others

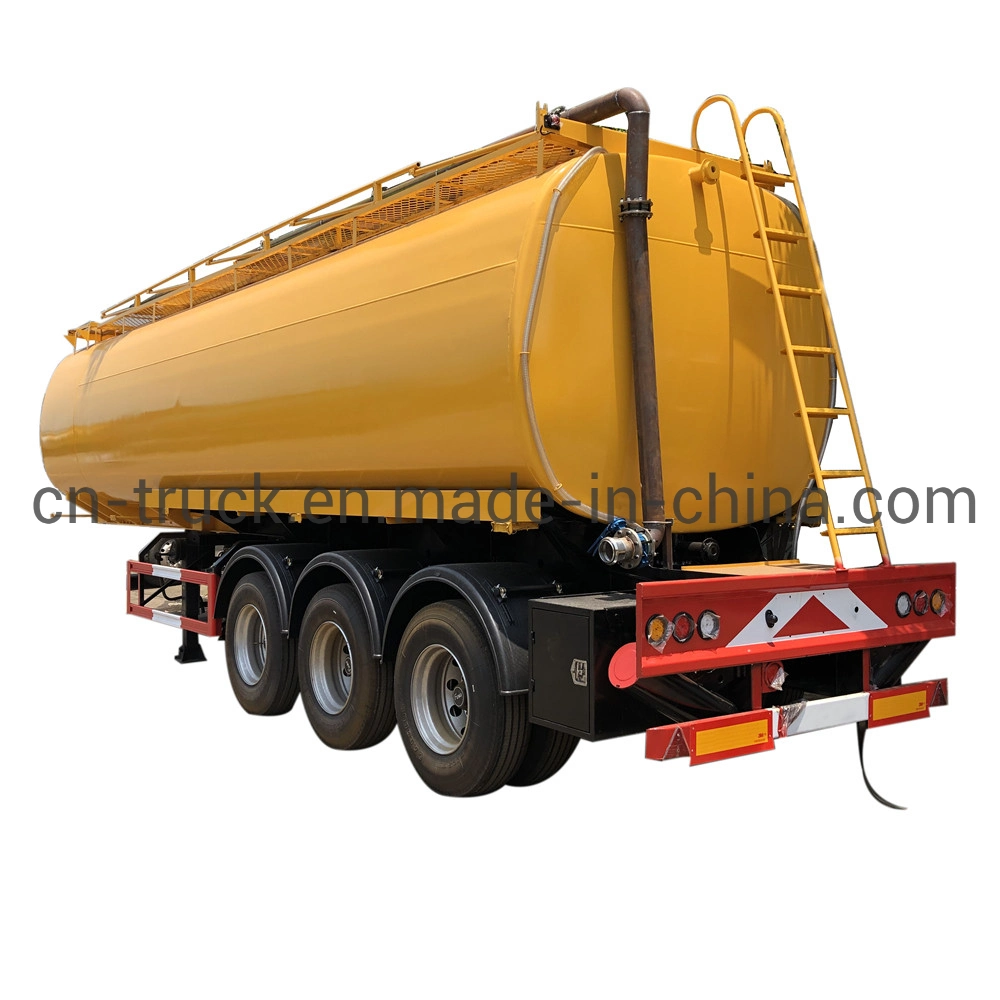

factory 40T 48000L 42T 50000l fuel tank trailer petrol tank oil trailer Photo ;

Factory 40t 48000L 42t 50000L Fuel Tank Trailer Petrol Tank Oil Trailer
Factory 40t 48000L 42t 50000L Fuel Tank Trailer Petrol Tank Oil Trailer
Factory 40t 48000L 42t 50000L Fuel Tank Trailer Petrol Tank Oil Trailer





Factory 40t 48000L 42t 50000L Fuel Tank Trailer Petrol Tank Oil Trailer


We make also tanker could be installed on your chassis ,based on tanker size , we choose to be transported by container or Other method ,

Other truck like factory 40T 48000L 42T 50000l fuel tank trailer petrol tank oil trailer we made:
Factory 40t 48000L 42t 50000L Fuel Tank Trailer Petrol Tank Oil Trailer
Factory 40t 48000L 42t 50000L Fuel Tank Trailer Petrol Tank Oil Trailer


>>Part II:Company Introduction

1, ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is the biggest special purpose vehicle manufacturer in China.also we are famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW.Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.

factory 40T 48000L 42T 50000l fuel tank trailer petrol tank oil trailer

2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
 We have been in this field for over 10 years, we have more than 300 types  of special trucks, our workers are more than 1000 and factory is more than 690,000m2 .We have successfully exported our trucks to Ghana, Sudan, Nigeria, Tajikistan, Namibia, Burma, Korea, Iran, Iraq, Vietnam etc. many Africa & Asia countries more than 4000 trucks every year.

3.Quality control:our company truck pass ISO,3C,BV certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.

4.Design capacity :Our factory have 30 technician and designer.

5. Exhibition:our factory attend the Guangzhou Trade Fair each year.

6. Export market: Africa,Asia,South America,Pacific and so on

7.Our company cooperate with famous chasis manufacturers,such as DONGFENG,FAW,SHINOTRUK,IVECO,FOTON,SHACMAN ,JAC , JMC ,KARRY,CHANGAN, HONGYAN , ISUZU, HINO ,NORTHBENZ , and etc.

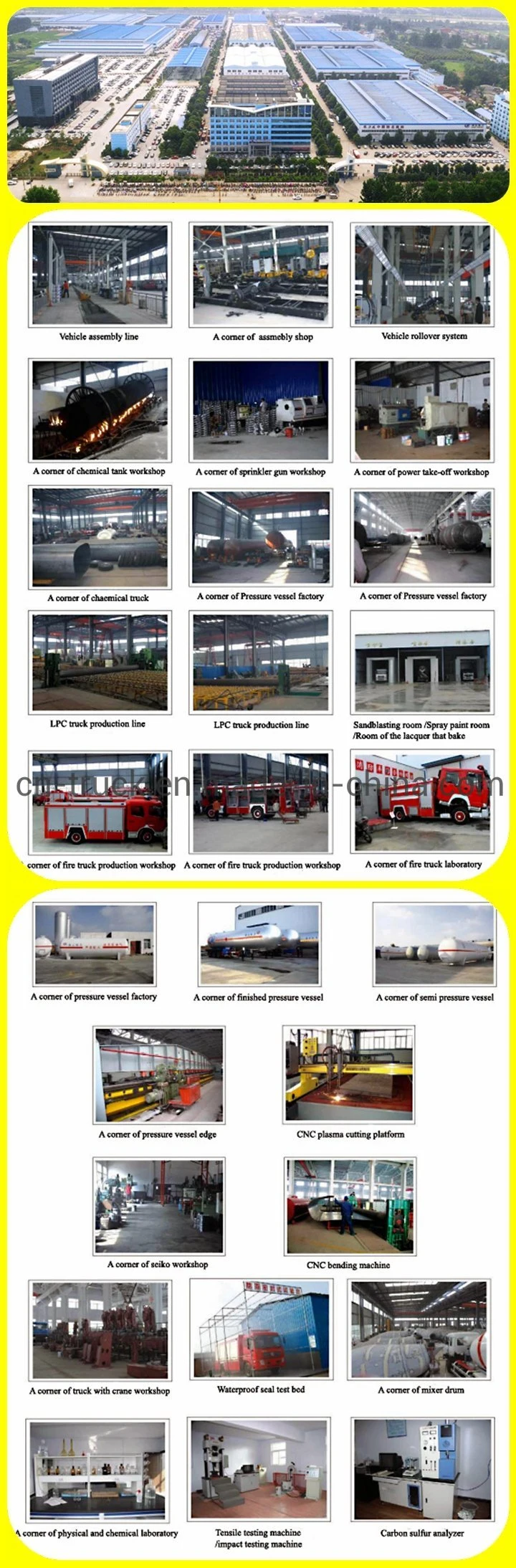

8.Factory Show:
Factory 40t 48000L 42t 50000L Fuel Tank Trailer Petrol Tank Oil Trailer
factory 40T 48000L 42T 50000l fuel tank trailer petrol tank oil trailer

>>Part III:Certificate

Factory 40t 48000L 42t 50000L Fuel Tank Trailer Petrol Tank Oil Trailer

>>Part IV:Shipment
Factory 40t 48000L 42t 50000L Fuel Tank Trailer Petrol Tank Oil Trailer
>>Part V:FAQ

Q1. Your service
A:Our services
1. we can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2. free consultation forever. When you meet small problems, professional advices can help you to solve them soon.
3. One year free cost warranty.
4. Spare parts forever. When you need spare parts, we can send them to you immediately.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

  LC terms is also can be accepted .

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.DAP etc .

Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

For standard products, delivery time is as below:

Water tanker truck:7 days
Fuel tanker trailer:15-20days
Garbage truck:15 days
Sweeper road truck:25 days
Wecker truck:7-10 days
Suction sewage/Fecal truck:7-15 days
Crane truck:15 days
Refrigerator/Van truck:7-15 days
Dump truck:20 days
Concrete mixer truck:7-25 days
LPG :20-30 days
LED truck:7-15 days
(the above is left hand drive chassis ,if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to contract .)

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. How to control truck quality?
A: we have Rich experience workers and engineer to control quality before and on production , we strictly followed STATE special truck technical specification and safety production specification .

We have been in this line for over 15 years, dealing with all kinds of special trucks and trailers.


Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery


Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

Q9. Did you sell truck to our country before?

A:Our main market is Africa, Asia, South America , Oceania ,middle east , annual sales is around 5000units and keeping growing every year .

Q10,If you have no certificate for exporting trucks to our country , what should we do?

A:There are some regions and countries we can not export completed truck but we can make body according to your requirements and send to you , you install it on your own chassis and sell completed truck .this can help you to save cost and  increase competitiveness

factory 40T 48000L 42T 50000l fuel tank trailer petrol tank oil trailer
