Foton 5600 Gallon Oil Transport Tanker Fuel Truck

Tanker Truck on Sale(Customerized is acceptable)Pls kindly tell us your detailed requests as below point:A. Tanker capacity :from 3 cubic meters to 50 cubic meters optional;B. Material of tanker : carbon steel, or stainless steelC. Emission standard of en

Featured Products

Tanker Truck on Sale(Customerized is acceptable)
Pls kindly tell us your detailed requests as below point:
A. Tanker capacity :from 3 cubic meters to 50 cubic meters optional;
B. Material of tanker : carbon steel, or stainless steel
C. Emission standard of engine in your Country: Euro 2/3/4/5?
D. Chassis brand: We could supply Sinotruk, Dongfeng, FOTON, JAC, I-SUZU, etc
E. Drive mode: left or right hand drive
Based on these details, we would choose right style for you !

I. Specification of Tanker Truck
Chassis BrandFoton
UsageLoad gasoline/diesel/petroleum
Total weight25000kg
Tare weight10230kg
Max payload14575kg
Tank volume21.75cbm
Overall dimension10160mm*2500mm*3170mm
Tank dimension7450mm*2370mm*1670mm
Protective deviceQ235-A steel,screw bolt connection
Bottom edge height420mm
Axle6750kg/6750kg/11500kg payload/3pcs
Tire10.00R20 18PR/8pcs
Leaf spring number10/10/10+9,10/10/9+6
Front/rear tread1890mm/1847mm
Front/rear suspension1365mm/2135mm
Approach/departure angle 18°/11°
Fuel typeDiesel
Passenger limit3 persons
Max speed80km/h
Braking systemWith WABCO ABS system
Electrical system24 voltage,7 wire harness.
LightLED type
PaintingWith shot blasting and 4 layers painting,color is optional.
RemarkThe above mentioned data is for your reference only.
The detailed specification will be subject to our final confirmation.

II. More Detailed Pictures of Tanker Truck
 Foton 5600 Gallon Oil Transportation Tank Truck Fuel Truck
Foton 5600 Gallon Oil Transportation Tank Truck Fuel Truck
Foton 5600 Gallon Oil Transportation Tank Truck Fuel Truck


 HUBEI VELDLION MACHINERY CO., Ltd is an authorized special purpose trucks manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
 Create value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.

IV. Our workshop view
Foton 5600 Gallon Oil Transportation Tank Truck Fuel Truck

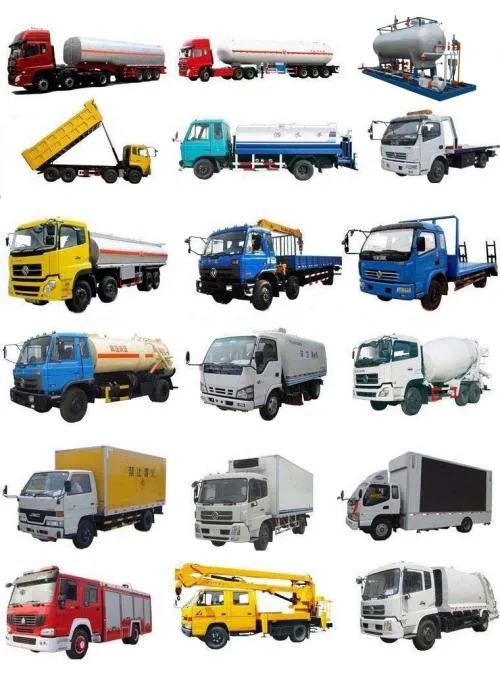

1. Dump Truck/Tipper Truck
2. Fire Fighting Truck
3. Truck amounted Crane
4. Semi-Trailer and Tractor Truck
5. Water Tank Truck/water bower truck
6. Fuel Tank Truck/fuel refulling truck
7. Concrete mixer truck
8. Fecal suction truck/ sewage suction truck
9. Light Cargo Truck/Mini Truck
10. High-altitude operation truck/cherry picker truck
11. Garbage Truck/Compactor Garbage Truck
12. Refrigretor truck
13. LPG Tanker/LPG tanker trailer/LPG skid station
14. LED Dislay Truck
15. Spare parts
Foton 5600 Gallon Oil Transportation Tank Truck Fuel Truck

1. more than 300 professional worker to supply high quality products;
2. Own engineer to design according to your request;
3. QC team to control the all production line;
4. Sales team to follow on all details for you;
5. 24hours on line after sales service;

VI. Packaging & Shipping
Packaging & Shipping for trucks
A. Packaging: Naked
B. Heavy trucks cound be shipped by RO-RO /Bulk vessel /Frame
C. Light trucks could be shipped 20ft /40ft container

1.Q:How about the warranty?
   A: 12months or 60,000km whichever comes first.
2.Q:How about the delivery time?
   A: It depends on the style of truck, normally  around 30 working days
3. Q:How about shipping ?
    A: Big size trucks always shipping by RORO or Bulk ship or flat bed container or open top container ,  small type can shipping by container, Pls contact us to get a shipping quotation .
4. Q: How do you control the quality of product?
    A: Our workers are well-trained, every truck under goes a scrutinizing inspection process.
5. Q: How about your product After-sales service system?
    A: Our main export countries have accepted after-sales service, some of country use the third department service.
6.Q: Do you accept Custom orders? What's is your MOQ order?
   A:Yes, we do, our MOQ is 1 set.
7.Q: What's the payment terms?
   A:By T/T or L/C at sight ,Western Union
