Manufacturer Supplier 54 CBM 3 Axles LPG Gas Tank Semi Trailer for sale
LPG tank trailer Parameters | |
Volume (L) | 54000 |
G.V.W (kg) | 37680 |
Curb Weight (kg) | 15000 |
Loading capacity (kg) | 22680 |
Overall Dimension (mm) | 13000x2500x3980 |
Number of axles (mm) | 3 |
Wheel Base (mm) | 6880+1310+1310 |
Approach/Departure Angle (ο) | -/26 |
Track Rear (mm) | 1840/1840/1840 |
Front/Rear Overhang (mm) | -/1450 |
Number of springs(F/R) | -7/7/7 |
Maximum Axle-load (kg) | -/39000 |
Tire specification | MAXXIS TUBELESS 11.00-20 Aluminum Alloy Rim |
Tank material | Q370R |
Thickness (mm) | 11.5 |
Tank Color | White |
Standard configuration | 13 tons of FUWA shaft, valve cover, single-fluid two-valve boxes, JOST legs, 2 inches (50mm) JOST traction pins, two sets of liquid level gauge (Automatic gauge in the front, Manual in the rear), pressure gauge, thermometer, emergency shut-off valve, anti-static grounding tape, fence , tire fenders |
Others | Filling medium:LPG(propane);designing pressure 1.77Mpa,designing temperature 50ºC,filling factor:0.42t/m3,corrosion margin:1mm;tank dimension:12311*2466mm |
Standard | GB150-1998 Steel Pressure Vessels,Pressure Vessel Safety technical monitoring procedures, liquefied gas tanker safety inspection procedures |
LPG semi-trailer (LPG semi trailer) is also known as liquefied gas semi-trailer, liquefied gas tank semi-trailer, liquefied gas tank semi-trailer, liquefied petroleum gas transport semi-trailer, liquefied petroleum gas semi-trailer, LPG tanker semi trailer. It is a special transport semi-trailer for transporting liquefied gases such as propane, propylene, dimethyl ether, liquid ammonia, methylamine and acetaldehyde.
Loading materials
Liquefied gas transport semi-trailers can be divided into: propane transport semi-trailer, propylene transport semi-trailer, dimethyl ether transport semi-trailer, liquid ammonia transport semi-trailer, methylamine transport semi-trailer, acetaldehyde transport semi-trailer, etc.
By axle
The liquefied gas transport semi-trailer can be divided into two-axis liquefied gas transport semi-trailer and three-axis liquefied gas transport semi-trailer.
Load capacity
Liquefied gas transport semi-trailers can be divided into: 24 cubic meters of liquefied gas transport semi-trailer, 44.2 cubic meters of liquefied gas transport semi-trailer, 47 cubic meters of liquefied gas transport semi-trailer, 50 cubic meters of liquefied gas transport semi-trailer, 54.7 cubic meters of liquefied gas Transport semi-trailer, 56 cubic meters of liquefied gas transport semi-trailer, 60 cubic meters of liquefied gas transport semi-trailer.
The liquefied gas transport semi-trailer can be modified according to customer's needs. It is suitable for liquid ammonia, liquid sulfur dioxide, propylene, propane, liquefied petroleum gas, dimethyl ether, n-butane, isobutane, butene, isobutylene, butadiene, ring. Transporting semi-trailers for most gases such as oxyethane.
The liquefied gas transport semi-trailer mainly has the following components:
Liquefied gas tank (made of Q345R steel plate), axle, tire, outrigger, traction pin, double discharge double valve box (pressure gauge, thermometer, tight-cut valve, ball valve), iron wave-proof plate, safety valve, liquid level Meters, fire extinguishers, toolboxes, anti-static tapes, spare tire carriers, plastic tire fenders, etc.
LPG Tank Trailer capactiy from 40m3 to 60m3

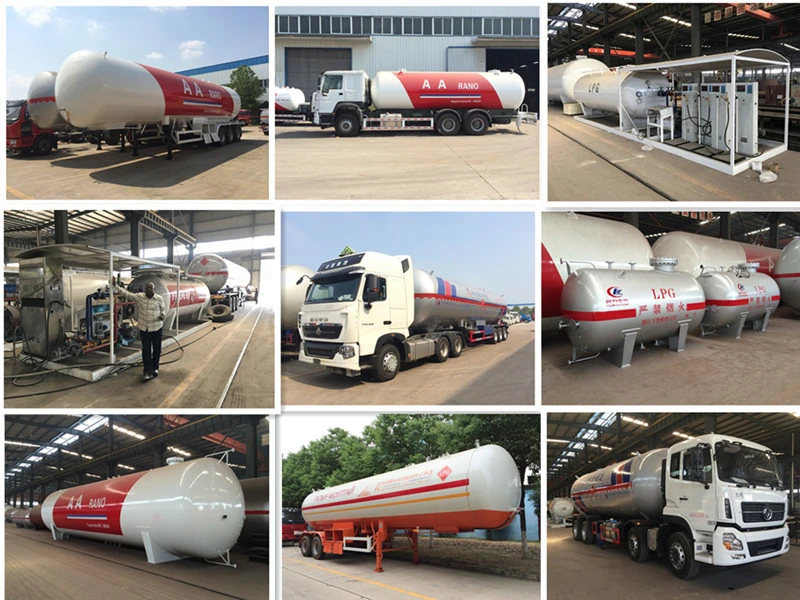

LPG Tank Trailer Export Case
Other LPG Products
Company Introduction
Hubei Chengli Group is located in Chengli auto industry park, Pingyuan town, southern suburb of Suizhou, Hubei. Suizhou is known as Shennong's native land, chime's hometown and "China's Special Vehicle Capital".
It is also the manufacturer of domestic well-known special vehicles used in landscape, petrochemical industry, the municipal environmental sanitation, and pressure vessel.
The registered trademark of which is "Chengliwei", and the product code is "CLW". It's the important partner of Dongfeng and Jiefang. And mainly engaged in manufacturing all kinds of special vehicles and selling full vehicle and fittings to large-scale manufacturers.
The company is a high-tech enterprise in hubei province and has passed the certification of ISO9001, ISO16949, GJB9001 and CCC authentication of automobile products.
Our Factory
Products Display
Qualification Certificate
Packaging & Shipping
Cooperative Brand
FAQ
1.You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile. And you are always welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.
5. How long could we receive our goods?
It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.
6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person
