Dimension and Weight
transport Fuel, Oil, Diesel
Material Q235 carbon steel
Tank body and separate compartment plate: 5mm
Dish end plate: 6mm
All welding are to be done by qualified welder per applicable national standard
3 compartments ( 3*14000L )
3 units Safety manhole with breath valve, Aluminum, diameter 500mm.
3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand
3 seamless steel tube, 6m
Tanker body test
Hydrostatic test to 5 psi (35 Kpa) on each compartment
14Ton, L1 brand optional FUWA brand, 3Axles, one hundred fifty thousand Kilometers no need maintenance
12R22.5, 12 pcs. Taitong brand
9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Chinese standard 24V lighting system
Dual line pneumatic brake, SAE hose and connector,no ABS
Brake air chamber
6 units T30/30 spring brake chambers
Emergency relay valve
Wabco relay valve
Tire Type and quantity
2 and 3.5 removable Kingpin, bolted in type 500mm from the front face of the front bolster

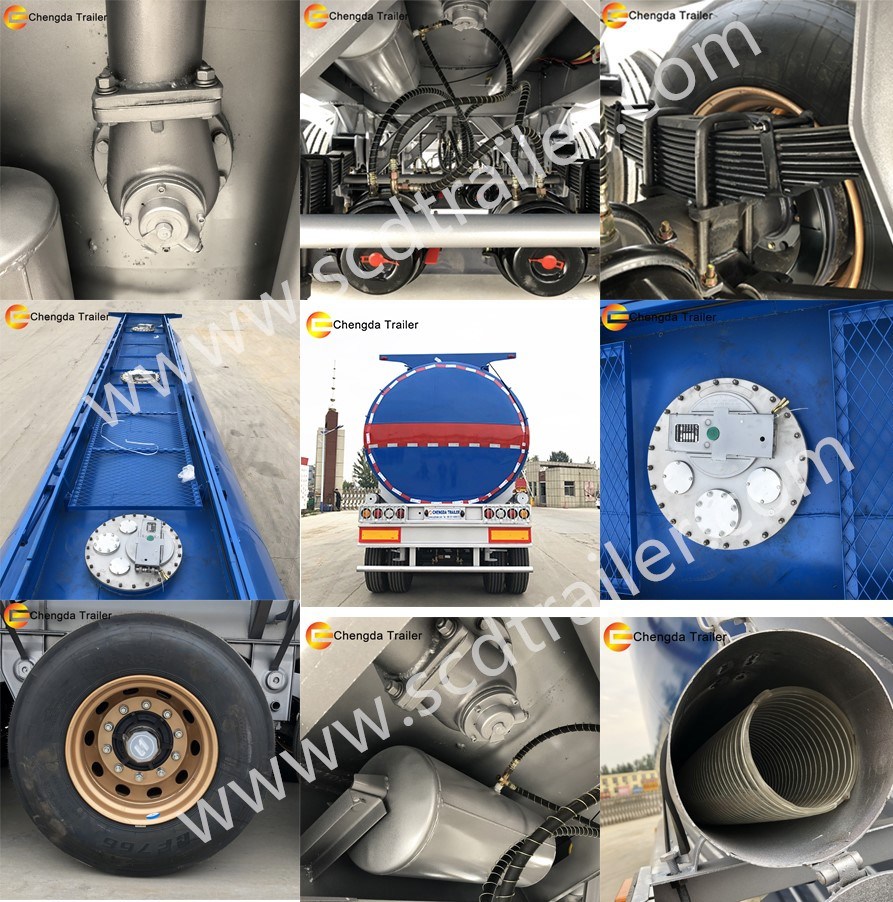

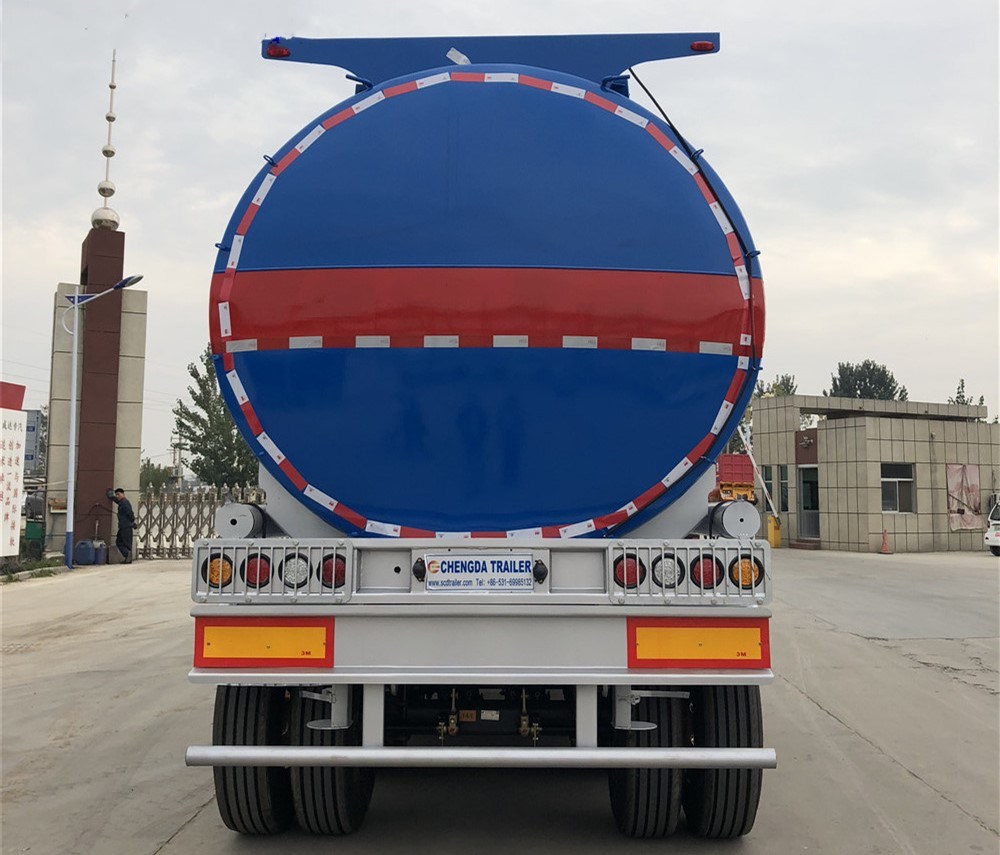

More view of the Oil Tank Trailer
-Packaging & Shipping-

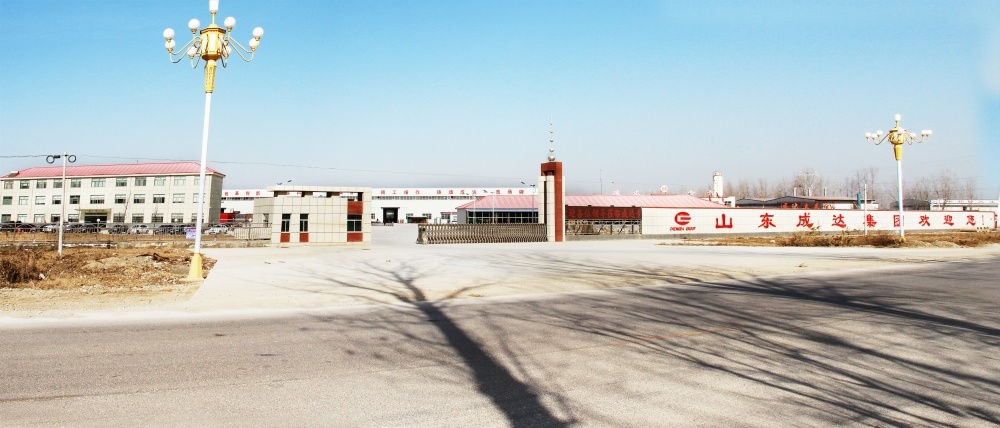

Shandong Chengda Trailer Manufacturer Co.,Ltd.
established in 2005 is one of the qualified manufacturers of various trailers, like lowbed semi-trailer, flatbed
semi-trailer,cargo trailer etc.Integrated production, scientific research&development and professional sales
teams, all those advantages could provide full service of trailers, semitrailers, tractor head, dump truck, e-
ngineering machinery and trailer parts
With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have
build long business relationship with many world famous enterprises such as SINOTRUK, SHACMAN, FAW,
In 2014, we enlarged our factory and add more prodution line. The sales valve in this year increase in a
1. Q:Are you a Manufacturer or Trading company?
A: We are trailer manufacturer and we have our own factory in Shandong province, China.You are welcomed to visit our factory to check our aluminum Oil Fuel Tank Trailer and other trailers.
2. Q:How long do you need to finish a trailer?
A: It usually takes round 10 days to finish the common low bed trailer, container trailer, skeleton trailers
after confirming the order. Oil tanker trailer, bulk cement trailer and special trailer needs round 30 days.
3. Q:How about your after-sale service?
A: We provide trailers and truck parts, technical support, etc for your all life once we have reached the deal and placed order from us.
Thank you for your attention!
