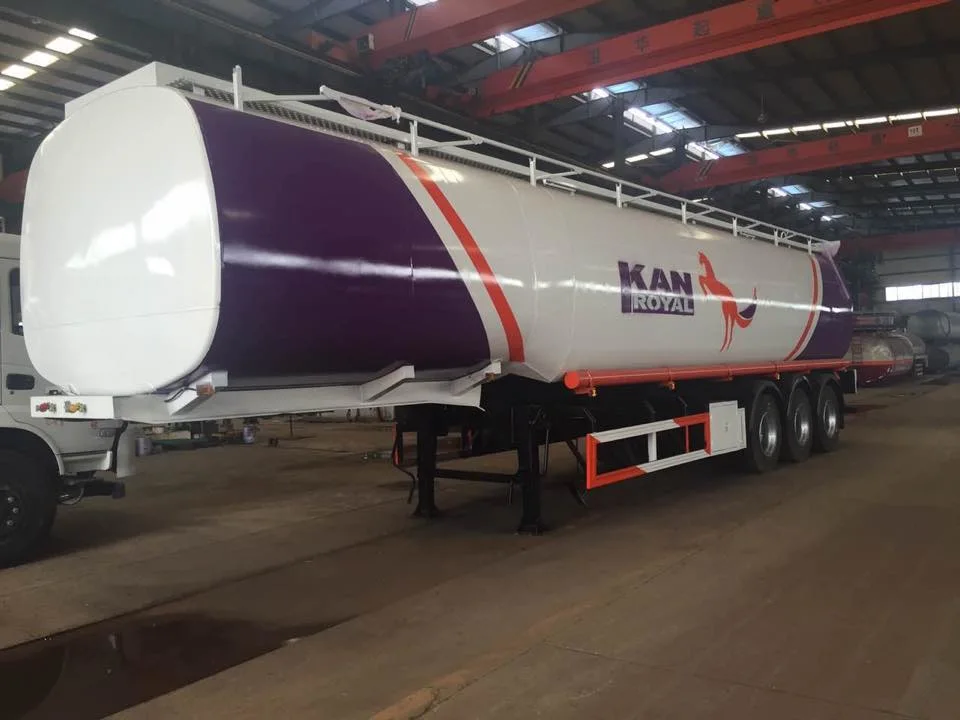

Three Axle 30000 L 35000 Litre Gasoline Liquid Tanker Fuel Tanker Trailer For Sale

Tri Axle 30000 L 35000 Liters Petrol Liquid Tanker Fuel Tanker Trailer for Sale                                     Main Dimensions Overall

Featured Products

Tri Axle 30000 L 35000 Liters Petrol Liquid Tanker Fuel Tanker Trailer for Sale

Tri Axle 30000 L 35000 Liters Petrol Liquid Tanker Fuel Tanker Trailer for Sale
Tri Axle 30000 L 35000 Liters Petrol Liquid Tanker Fuel Tanker Trailer for Sale
Tri Axle 30000 L 35000 Liters Petrol Liquid Tanker Fuel Tanker Trailer for Sale



                                    Main Dimensions
Overall Length13000mm
Overall Width2500mm
Overall Height3975mm
Curb Weight7950kgs
Loading Capacity48m3
Loading Weight32050kgs
Length12520mm
Width2500mm
Height2110mm
Total Volume48 m3
MediumPetrol
Tanker Body Material6mm Aluminum Alloy
End plate8mm Aluminum Alloy
Lifting LadderIncluding Top walkway and backside Aluminum material
Manhole cover2 sets with 2 breather valves
Bottom Valve1 set
Discharging valve1 set
Discharging Pipe4"rubber hose, 2pcs, 6m long
Axle3 axles
Fuwa 13 Ton
Axle load-/24000
wheel base7000+1320+1320mm
Overhang(front/rear)-/1680mm
Wheel track(rear)1840/1840/1840mm
Departure angle18°
Landing GearC200,Two-speed, manual operating, heavy duty landing gear
King Pin90#
SuspensionLeaf spring suspension
Pneumatic Braking SystemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber
Tire12R22.5,12pcs + 1 spare
Other Design and parts1. Vapor recovery system
2. Dust Board to Cover the Tires(optional)
3. Rear and side lights
4. Rear Ladder to access the top of the tanker
5. Tool Box
6. Double Spare Tire Carrier
7. 4 fire extinguisher holders
8. Overfill prevention sensor/Overfill prevention socket
9. Vapor adapter/Vapor vent valve/API loading and unloading valve

Pneumatic Braking System
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber
Tire12R22.5,12pcs + 1 spare
Other Design and parts1. Vapor recovery system
2. Dust Board to Cover the Tires(optional)
3. Rear and side lights
4. Rear Ladder to access the top of the tanker
5. Tool Box
6. Double Spare Tire Carrier
7. 4 fire extinguisher holders
8. Overfill prevention sensor/Overfill prevention socket
9. Vapor adapter/Vapor vent valve/API loading and unloading valve

Features

1, Fuel tank applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy.
2, BPW, FUWA or L1 axle
3, Fuel tank trailer with the famous pump .
4, Factory direct sale. Very competitive  price with high quality.
5, The main parts for fuel tank trailer implements automatic welding.
6, Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
7, Fire extinguisher replaced on the back of the truck for the emergency.
8, Painting held more tolerance and coherence, can make sure the tank in good situation more than 10 years.
9,  According to customer's needs.
3 Axle Aluminum 45m3 Fuel Tank Semi Trailer

The advantages

1. Maximum solidity and lightness of the construction;
2. Reducing transport costs by 1 ton of the transported goods;
3. Improving safety of transporting hazardous goods (not subject to corrosion, wearproof, spark-proof)
4. The lightest vehicles, with maximum volume and a long service life for all types of cargo

Packaging & Shipping

1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
Tri Axle 30000 L 35000 Liters Petrol Liquid Tanker Fuel Tanker Trailer for Sale


More Products
Tri Axle 30000 L 35000 Liters Petrol Liquid Tanker Fuel Tanker Trailer for Sale


Company Information

Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China, We are a Professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks.
Our company cooperates with famous chassis manufactureer, such as DONGFENG, FAW,SINOTRUK, JAC, SHACMAN, FOTON and etc.
Chengli take customer's  satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place.They mainly from below country:Angola,Algeria,Kenya,Nigeria,Rwanda,Sudan,Zambia,Libya,Congo, Indonesia, Malaysia, Philippines,Vietnam,Turkey,Yemen,Syria.

Tri Axle 30000 L 35000 Liters Petrol Liquid Tanker Fuel Tanker Trailer for Sale

Chengli Special automobile Co., Ltd also provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

FAQ

1.Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery.   All by T/T, L/C.
2.Delivery time: 30 working days after payment is received.

Our warranty

1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
